Dimethyl Sulfoxide Crystallization Point Meter Automatic Crystallization Point Testerdouble Vacuum Glass Bath.

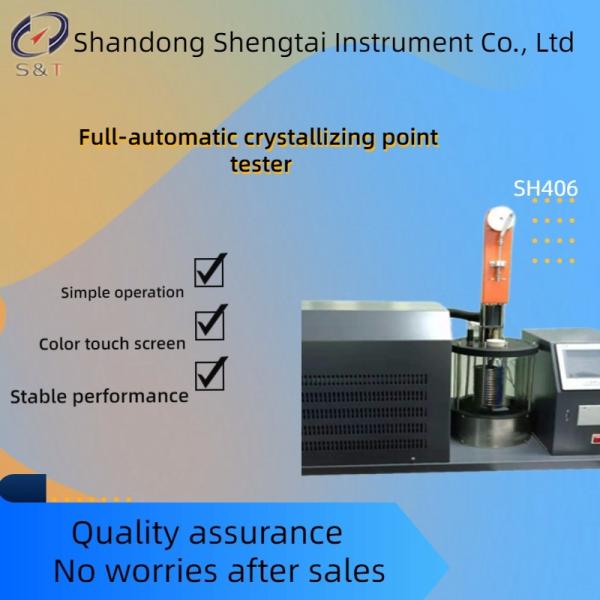

SH406B automatic crystallization point tester is applicable to the standard GB/T3145-1982 benzene crystallization point determination, GB/T 3069.2-2005 naphthalene crystallization point determination, GB/T 3710-2009 industrial phenol, phenol crystallization point determination, GB/ T7333-1993-2005 organic chemical products crystallization point determination, GB/T618-2006 chemical reagent crystallization point determination.
II. Compliance with standards:
1. Upgraded to 7-inch TFT color LCD display;
2. Refrigeration mode: fully enclosed and efficient refrigeration compressor.
3. Number of experimental groups: 1 group (2 groups can be customized).
4, detection mode: imported PT100 temperature sensor
5, after the upgrade can store historical data, convenient query;
At the same time can be equipped with U disk output function.
6, standard micro printer automatic measurement automatic printing
7. After the completion of the test, if there is no personnel to operate, set the automatic closing time of the refrigerator within 0-50min to avoid frequent opening of the compressor and prolong the service life of the instrument.
8, Include laser printer interface, can be linked to HP1108 laser printer (optional).
★9, with date password setting function.
10, standard micro printer automatic measurement automatic thermal printing
★11, with TCP network transmission function
★12, can be uploaded and connected to LIMIS system
Technical parameters
Working power supply: AC220V±10%;50 hz.
Working cold tank: double vacuum glass bath.
Cold tank temperature control: +80℃ ~ -10℃.
Temperature control accuracy: ±0.01℃.
Bath liquid stirring: automatic stirring by stirring motor, power 6W, 1200r/min.
Refrigeration system: new refrigeration compressor.
Sample stirring: synchronous reducer motor, 60 times/min.
Ambient temperature: ≤30℃.
Relative humidity: ≤85%.
Power consumption: about 1500W.
Storage: 199 sets of historical data can be stored for easy query;
Result output: at the same time can be equipped with U disk output function, output to the PC for long-term storage
Output format: The output format of the result USB flash disk is CSV or EXCEL.
★ Data extension: laser printer interface, can be linked to HP1108 laser printer (optional).
★ Data protection: with date password setting function.
Standard printing: standard micro printer automatic measurement automatic thermal printing
★ Remote upgrade: with TCP network transmission function, can be later software remote upgrade
★ Data management: can be connected to LIMIS system
★ Data memory: microcomputer instrument memory can be expanded to 16G.
| working cold tank | double vacuum glass bath. |
| cold tank temperature control | +80℃ ~ -10℃ |
| control accuracy | ±0.1℃ |
| Bath liquid stirring | automatic stirring motor, power 6W 1200r/min |
| working power supply | AC220V±10%;50 hz. |
| Refrigeration system | new refrigeration compressor. |
| sample mixing | synchronous reducer motor, 60 times/min. |
| Ambient temperature | ≤30℃ |
| relative humidity | ≤85%. |
| Power consumption of the whole machine | about 1500W |
| Instrument size: 680 * 380 * 480mm Weight: 35kg |
| Storage mode | 199 sets of historical data can be stored for easy query; |
| Results output | at the same time can be equipped with U disk output function, output to the PC for long-term storage |
| Data extension | laser printer interface, can be linked to HP1108 laser printer (optional). |
| Output format | the output format of the result USB flash disk is CSV or EXCEL. |
| Data protection | with date password setting function. |
| Remote upgrade | with TCP network transmission function, can be later software remote upgrade |
| Data management | can be connected to LIMIS system |
| Data memory | microcomputer instrument memory can be expanded to 16G. |
| Standard printing | Standard micro printer automatic measurement automatic thermal printing |
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Crystallization point test tube | 1 | set | |
| 3 | Temperature sensor | 2 | piece | |
| 4 | Power cord | 1 | piece | |
| 5 | instruction | 1 | copy | |
| 6 | Packing list | 1 | copy | |
| 7 | Certificate warranty card | 1 | copy | |
